Melting Equipment - BY Series JDF2-BY1/3/5

This device has a compact and smooth appearance, and an integrated operating platform makes the entire operation process easier and simpler. It can be used for both quartz and graphite or for single use, with high-quality melting effects tailored for small-scale melting needs, allowing you to achieve maximum returns with minimal investment. In addition, a stable heating system and reliable protection function make the whole machine durable and long-lasting.

This machine with compact and smooth appearance,The integration of the operation platform makes the whole process more easy and simple,the quartz graphite dual-use or single-use can be customized,high quality melting effect which is specially designed for small-scale melting requirements,which can gain maximum return with the lowest cost,besides,the stable heating system and reliable protective function can extending the machine' s service life.

Technical Parameter

Power Supply

380V/50HZ/60HZ/Three-phase five-wire

Smelting Capacity

1KG

3KG

5KG

Output Power

9KW

12 KW

20KW

Melting Time

2-3Mins

2-3Mins

3-5Mins

Max Temperature

2000℃

Applied Metal

Gold/Platinum/Palladium

Cooling

Running water/chiller

*Capacity can be customized according to customer needs*

*Can be customized according to customer requirements*

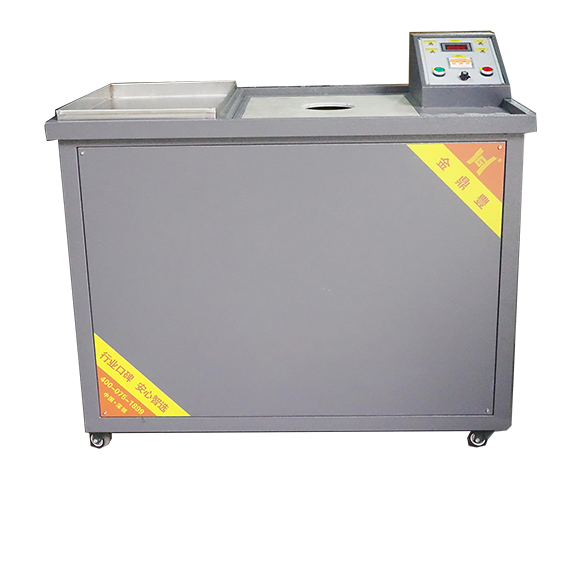

Real Shooting Display

Applicable Scenarios

  • Jewelry Processing
  • Precious metal materials
  • Precious metal refining
