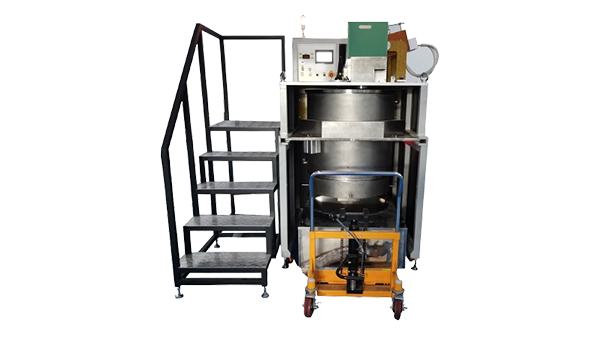

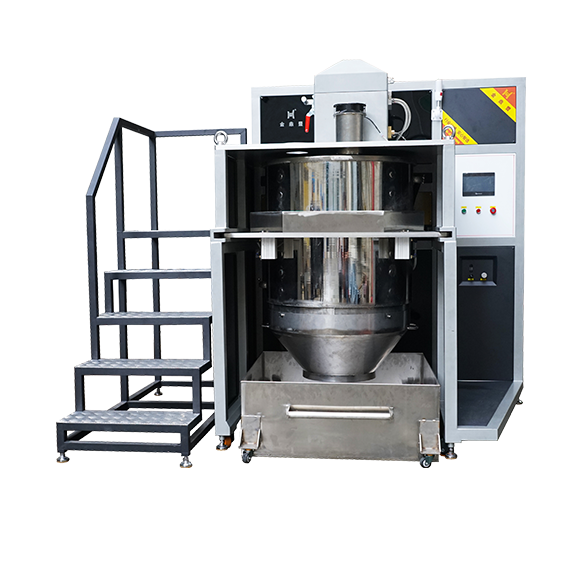

Film punching equipment - Film punching machine JDF-CP100

1. The main working principle of this device is to use medium frequency induction heating to drop the material, and then produce alloy sheets through centrifugal rotation principle.

2. This device can convert 380V, 50HZ current to medium frequency for induction heating.

3. This machine can avoid oxidation and loss caused by gold and silver stamping at high temperatures and efficiently control it; Help improve purification efficiency and significantly reduce production costs; At the same time, it improves the quality of purification and solves the problem of inconvenient recycling.

4. This machine is suitable for precious metal refining plants using chlorination or aqua regia methods, completely replacing composite gold tablets. It can melt different shapes of old precious metals, suitable for K gold and gold, saving production costs and labor, and improving efficiency. Accelerate dissolution time to make aqua regia refining more efficient.

5. This machine operates in a closed system with almost zero loss, reliable quality, and safe production; Meanwhile, medium frequency is harmless to the human body.

Technical Parameter

Power Supply

380V/50Hz/Three phases, five wire

Power Supply

60KW

Melting material for melting metals

Gold, Silver, Copper

Maximum Melting Capacity

100KG Gold 100KG Gold

Maximum temperature

1350℃

Slice thickness

0.1-0.3mm

Melting time

30-40 minutes/furnace 30-40 minutes/furnace

Cooling water source

Tap water/chiller

Power supply requirement

Air switch 160A, cable 25 square meters

Inert gas (hydrogen or nitrogen) Nert gas (Argon/Nitrogen)

0.2Mpa,Usage 0.36m3/h

Compressed gas

0.6-0.8Mpa,Usage 0.5m3/h

Protecting water

0.2Mpa

Crucible material

High purity graphite

Crucible service life

20 times/piece

Crucible size

Outer 260 * Height 300 * Hole M65 Tooth Pattern 1.0mm Outsidep260 * H300 * Hole M65&# 39; Denticulate hinge 1.0mm

Dimensions of appearance

Host approximately 1350 * 1900 * 2250mm Ladder approximately 1700 * 690 * 2250mm Filter device approximately 1200 * 500 * 1200mm Material receiving cart approximately 1700 * 1100 * 1100 Chiller (JDF2-LS5) approximately: 1150 * 570 * 1110mm

Weight of the body

Host weighing 1380KG, ladder weighing 100KG, filtering device weighing approximately 100KG, feeding cart weighing approximately 138KG, chiller (JDF2-LS5) weighing approximately 180KG

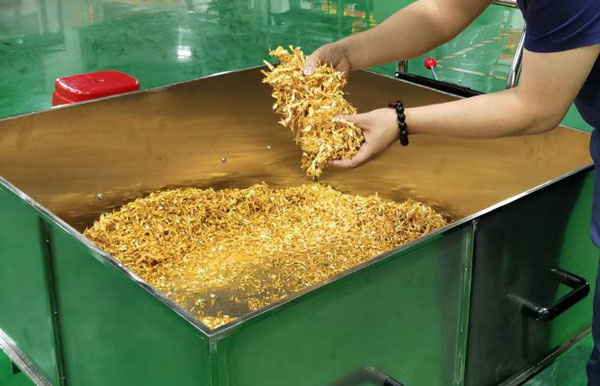

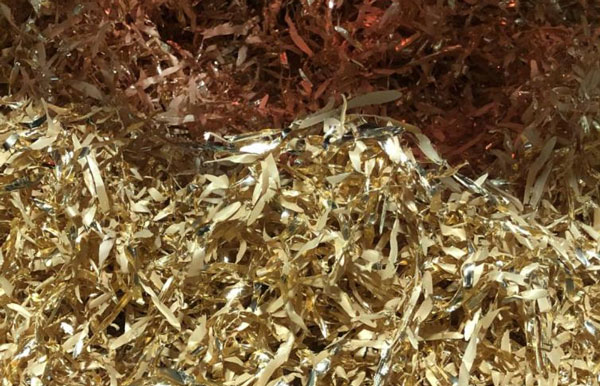

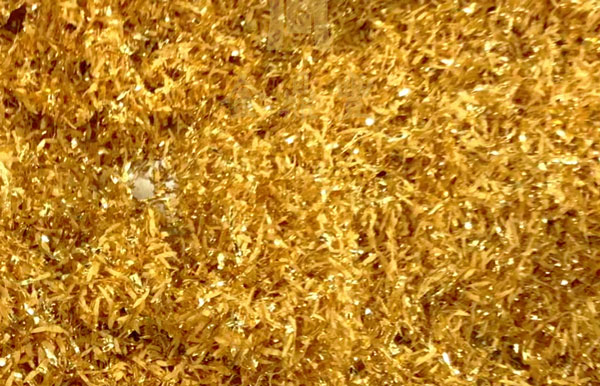

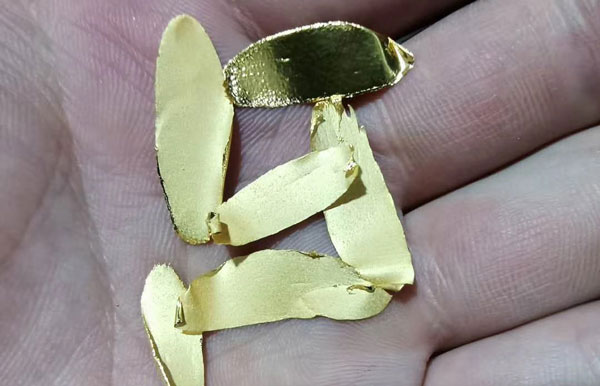

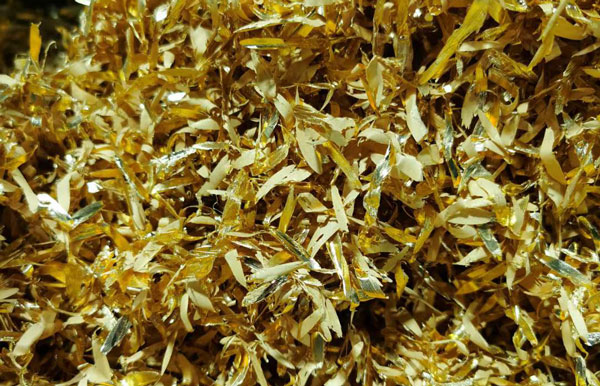

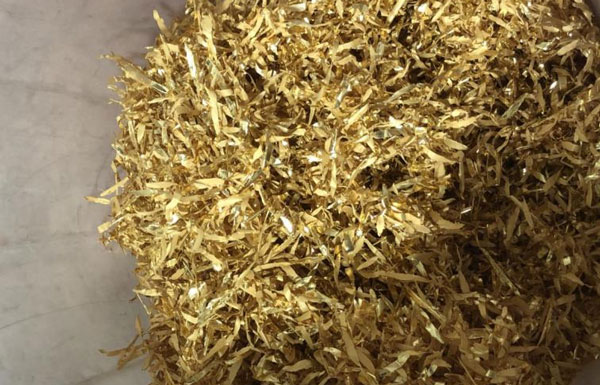

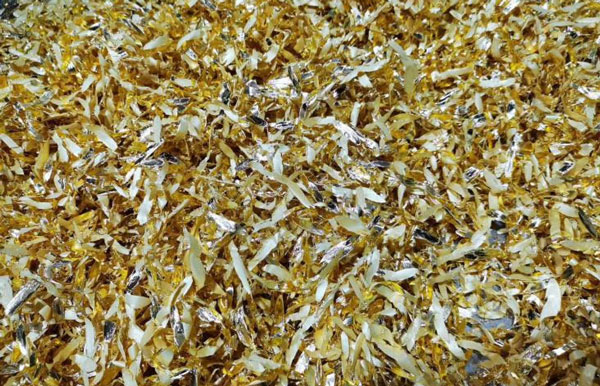

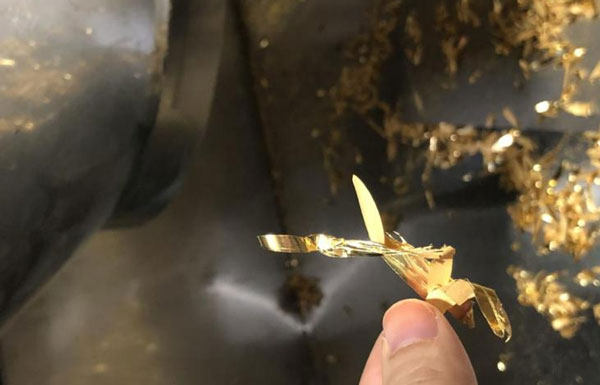

Real Shooting Display

Applicable Scenarios

  • Jewelry Processing
  • Precious metal materials
  • Precious metal refining
