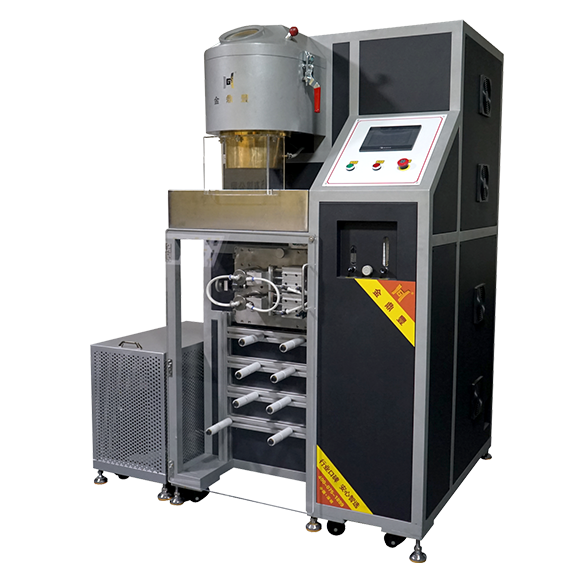

Casting Equipment - Vacuum Continuous Casting Machine JDF3-ZLX30/60/100

This machine uses inert gas protection to dissolve and prevent metal evaporation, thereby minimizing waste. It can cast high-density alloys such as gold, K-gold, silver, and other irregular profiles, such as circular, square, and hollow tubes. By adopting the next casting method, the sand holes can be controlled to a minimum, and the high efficiency of the electromagnetic stirring function in casting makes the product look more uniform.

This machine using the inert gas to protect the dissolution,preventing the metal vaporization,which can reduce the wastages to the minimum range.It can cast high-density gold,K gold,silver and other precious sheet metals and other irregular profiles like round,square tube,hollow tube and so on.The sand hole can be controlled to the lowest limited by adopting the next cited method of casting,high efficiency of the electromagnetic stirring function in the casting makes the product looks more even.

Technical Parameter

power supply

Power Supply

380V/50HZ/60HZ/three-phase five wire

380V/50HZ/60HZ/Three-phase five wire

capacity

Smelting Capacity

30 KG

60 KG

100 KG

output power

Output Power

23KW

30KW

40KW

Casting time

Casting Time

Lying down for 20 minutes

20 Mins

30 minutes

30 Mins

45 minutes

45 Mins

maximum temperature

Max Temperature

1200℃

cupola metal

Applied Metal

Gold/K gold/silver/copper, etc

Gold/K-gold/Silver/Copper and e

degree of vacuum

Vacuum Degree

1oo

cooling

Cooling

Tap water/chiller

Running water/chiller

*Capacity can be customized according to customer needs*

*Can be customized according to customer requirements*

Real Shooting Display

Applicable Scenarios

  • Jewelry Processing
  • Precious metal materials
  • Precious metal refining
