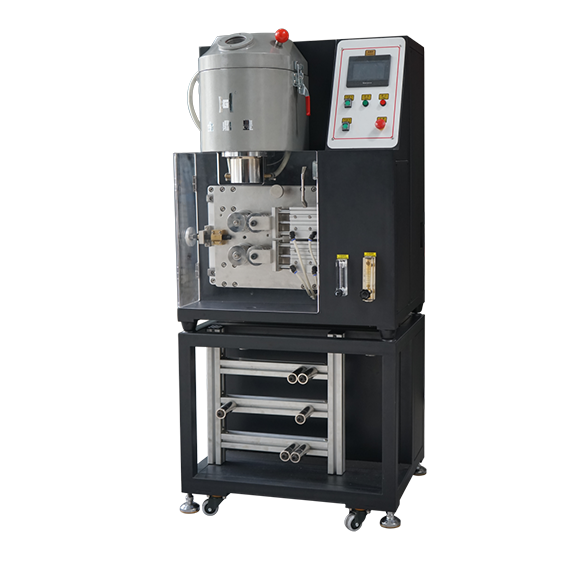

Casting Equipment - Mini Continuous Casting Machine JDF3-LX2/4/6

This machine uses inert gas protection to dissolve and prevent metal evaporation, thereby minimizing waste. It can cast high-density alloys such as gold, K-gold, silver, and other irregular profiles, such as circular, square, and hollow tubes. By adopting the next casting method, the sand holes can be controlled to a minimum, and the high efficiency of the electromagnetic stirring function in casting makes the product look more uniform.

This machine using the inert gas to protect the dissolution, preventing the metal vaporization,which can reduce the wastages to the minimum range.It can cast high-density gold,K gold,silver and other precious sheet metals and other irregular profiles like round,square tube,hollow tube and so on.The sand hole can be controlled to the lowest limited by adopting the next cited method of casting,high efficiency of the electromagnetic stirring function in the casting makes the product looks more even.

Technical Parameter

power supply

380V/50HZ/60HZ/Three-phase five-wire

PoerSply

Smelting  Capacity

2 KG

4KG

6 KG

Output Power

10 KW

13 KW

15KW

Melting Time

6-10 minutes 6-10 minutes

8-12 minutes 8-12 minutes

8-15 minutes 8-15 minutes

Max Temperature

1450℃

Applied Metal

Gold/K-gold/Silver/Copper and etc.

Cooling

Running water/chiler

*Capacity can be customized according to customer needs*

*Can be customized according to customer requirements*

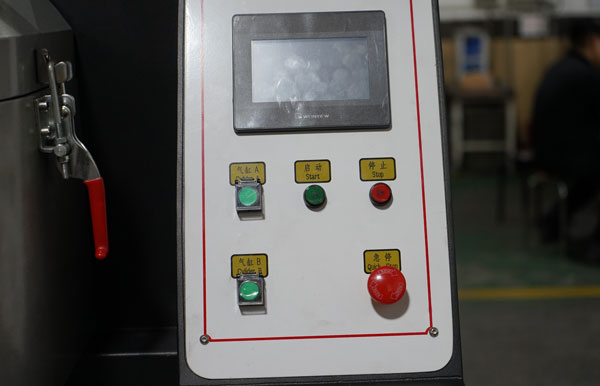

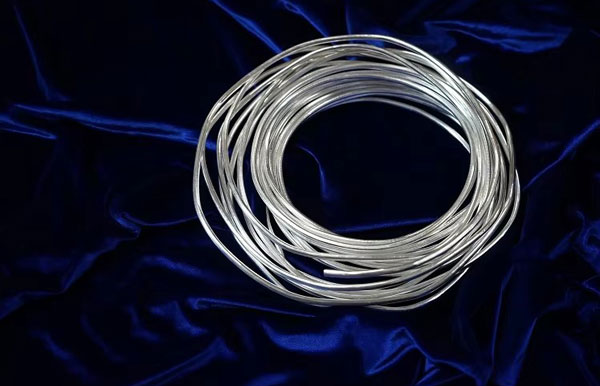

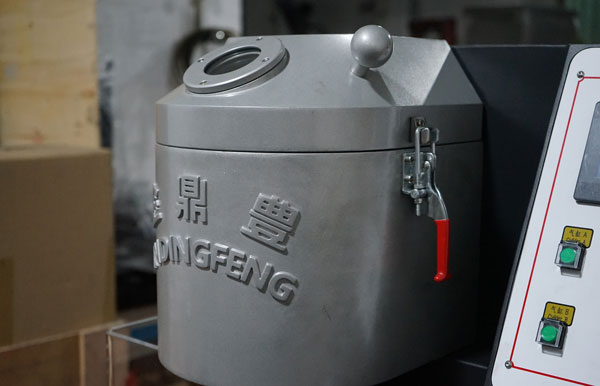

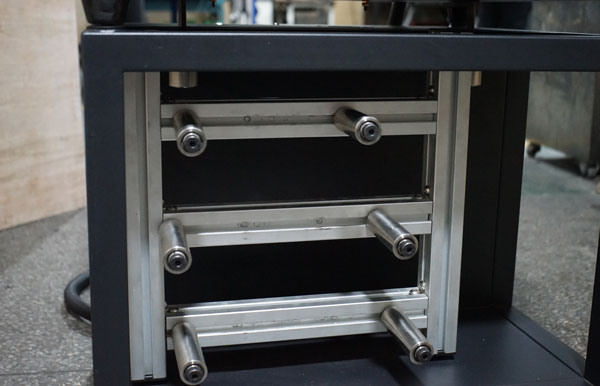

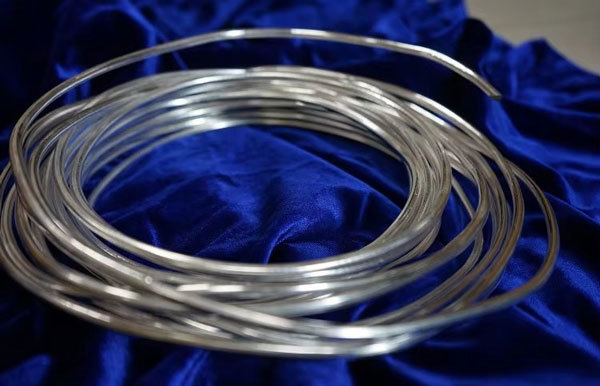

Real Shooting Display

Applicable Scenarios

  • Jewelry Processing
  • Precious metal materials
  • Precious metal refining
