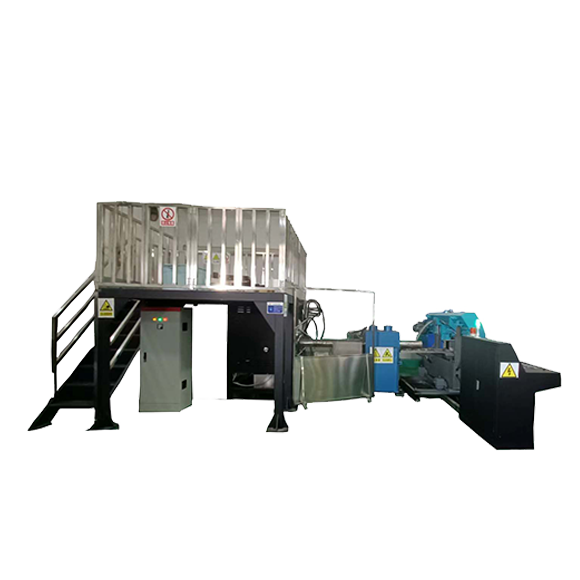

Casting Equipment - Horizontal Continuous Casting Machine JDF2-LX350

This equipment was independently developed by Jindingfeng and can be used for the production technology of gold casting, silver casting, and their alloys. It can obtain bars and sheets according to the corresponding specifications of the mold size. The produced blanks have the advantages of good density and no sand holes, and are widely used in industries such as coinage, jewelry, electronics, and dentistry.

The equipment is independently developed by Jindingfeng. whichcan be used for the production technology of gold casting, silvercasting and their alloys. The rods and sheets can be obtainedaccording to the corresponding specifications of the mold size, andthe blank material can be produced with good density and notrachoma.It is widely used in the industries of coinage, jewelry.electronics and dentistry.

Technical Parameter

content

data

power supply

380V/50Hz/three-phase five wire

Output power of continuous casting machine

90KW

Power of continuous casting and cutting auxiliary system

10KW

cupola metal

Silver, copper, etc

maximum capacity

350KG

maximum temperature

1250℃

Cooling water source

Chiller/closed water tower, water pressure 0.25-0.35mpa

water temperature

Around 25 ℃

Casting size

φ100*1000mm

smelting time

4-6 hours

noble gas

Four nitrogen/argon gases with a purity of 9 or higher

compressed gas

0.6-0.8mpa

other

① Equipped with a track pressure bed, automatic feeding to the clamp plate;

② The equipment is equipped with a feature that can automatically discharge silver water into a high-temperature mud tray in case of any issues;

③ The continuous casting cutting auxiliary system includes a servo traction machine, a saw belt saw cutting machine, and a hydraulic system.

Device dimensions

Platform approximately: 3200 * 3000 * 2950mm

Appearance: Approximately 3200 * 6000 * 2950mm

body weight

About 4000 KG

*Capacity can be customized according to customer needs*

*Can be customized according to customer requirements*

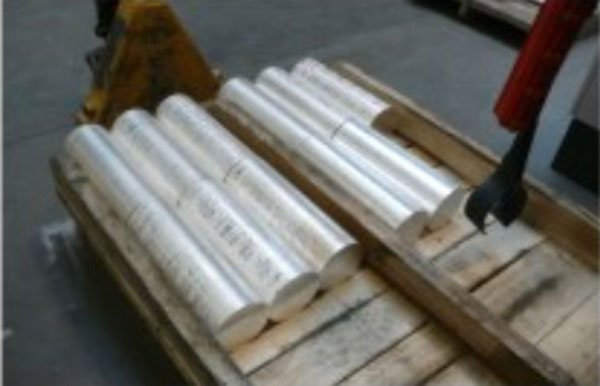

Real Shooting Display

Applicable Scenarios

  • Jewelry Processing
  • Precious metal materials
  • Precious metal refining
